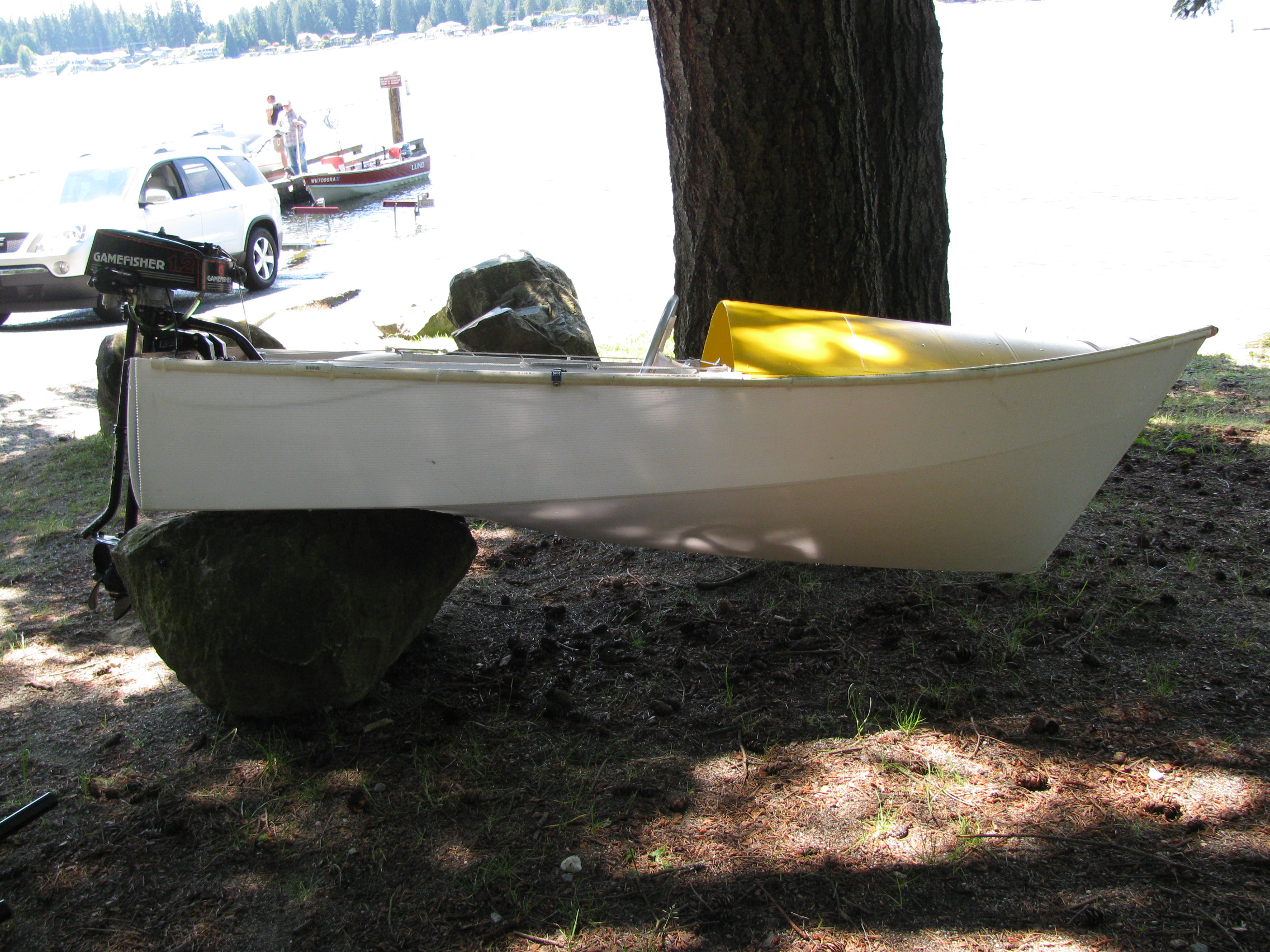

The Speed boat is basically a 4×8 ft sheet of 6mm Coroplast, better known as fluted plastic.

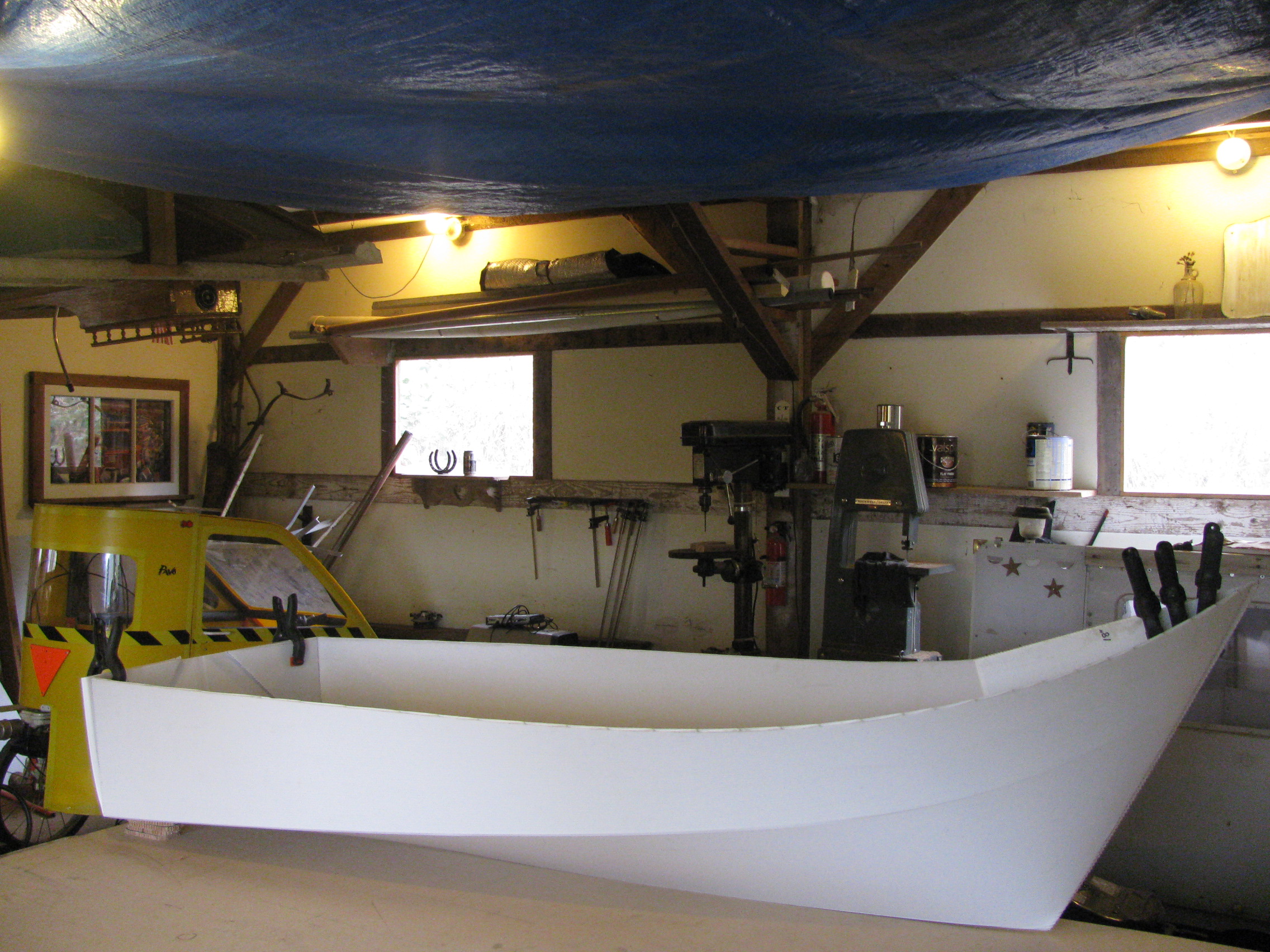

The boat folds are similar to a Chinese to-go food box except the fluids are kept outside instead of inside.
Because of these folds, all that’s needed to keep the structure together are a new bolts. No glue or finish is needed.

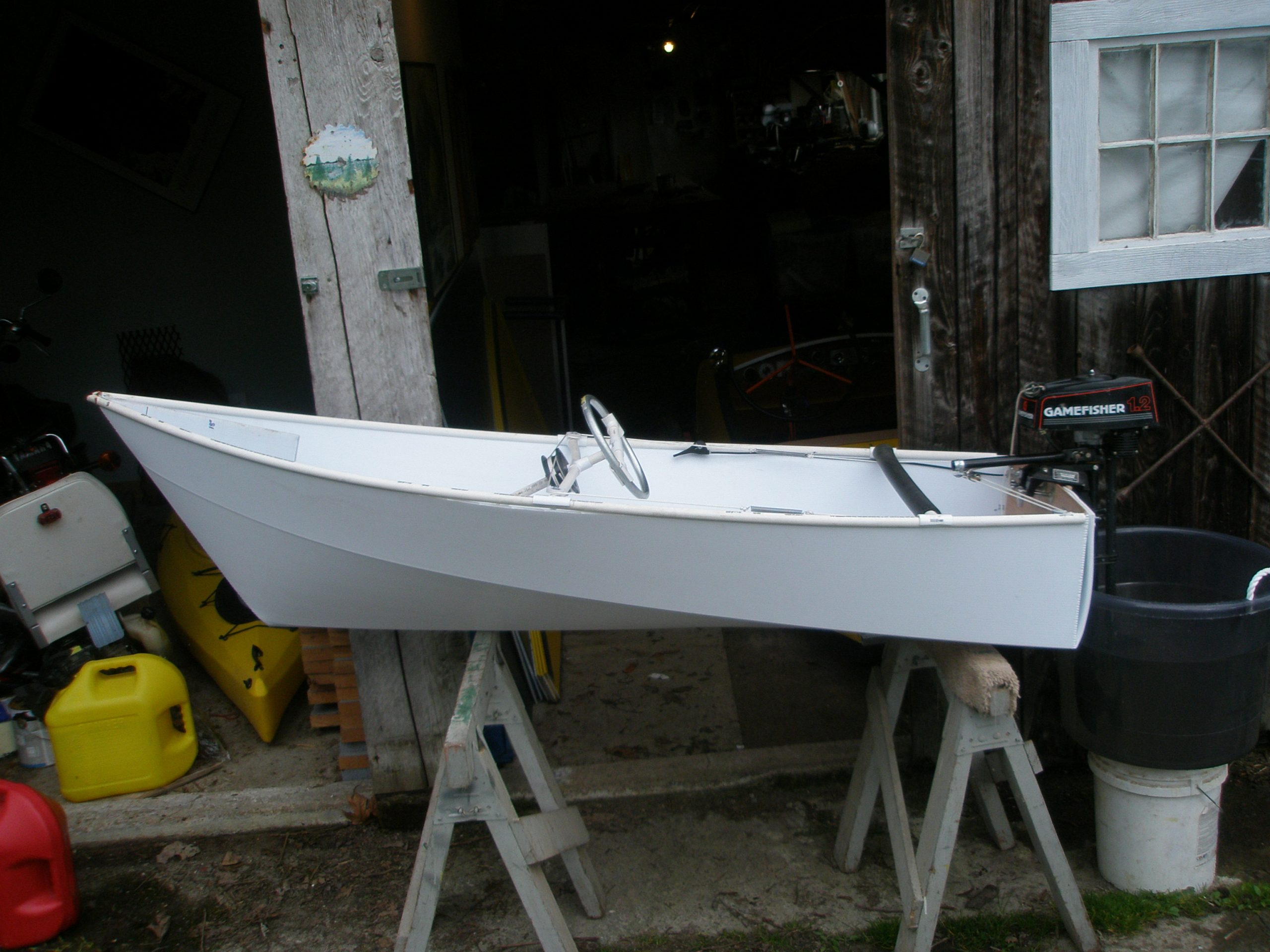

For hull support I cut a slit down PVC tubing with a table saw, then slid these over the top hull edges.
.

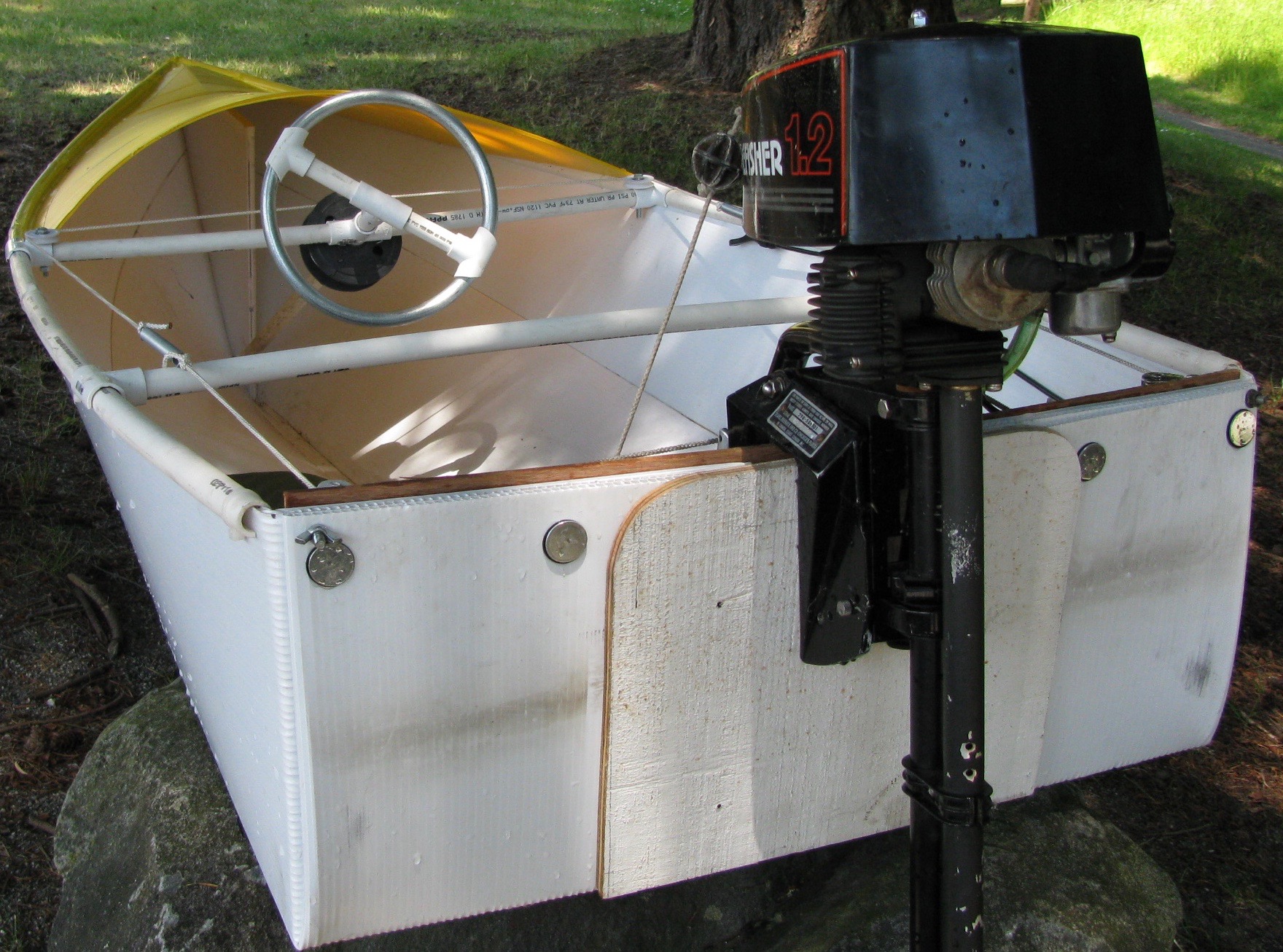

Extra PVC was added for steering and hull bracing. A 15 pound Game fisher 1.2 hp motor keeps this boat nice and light.

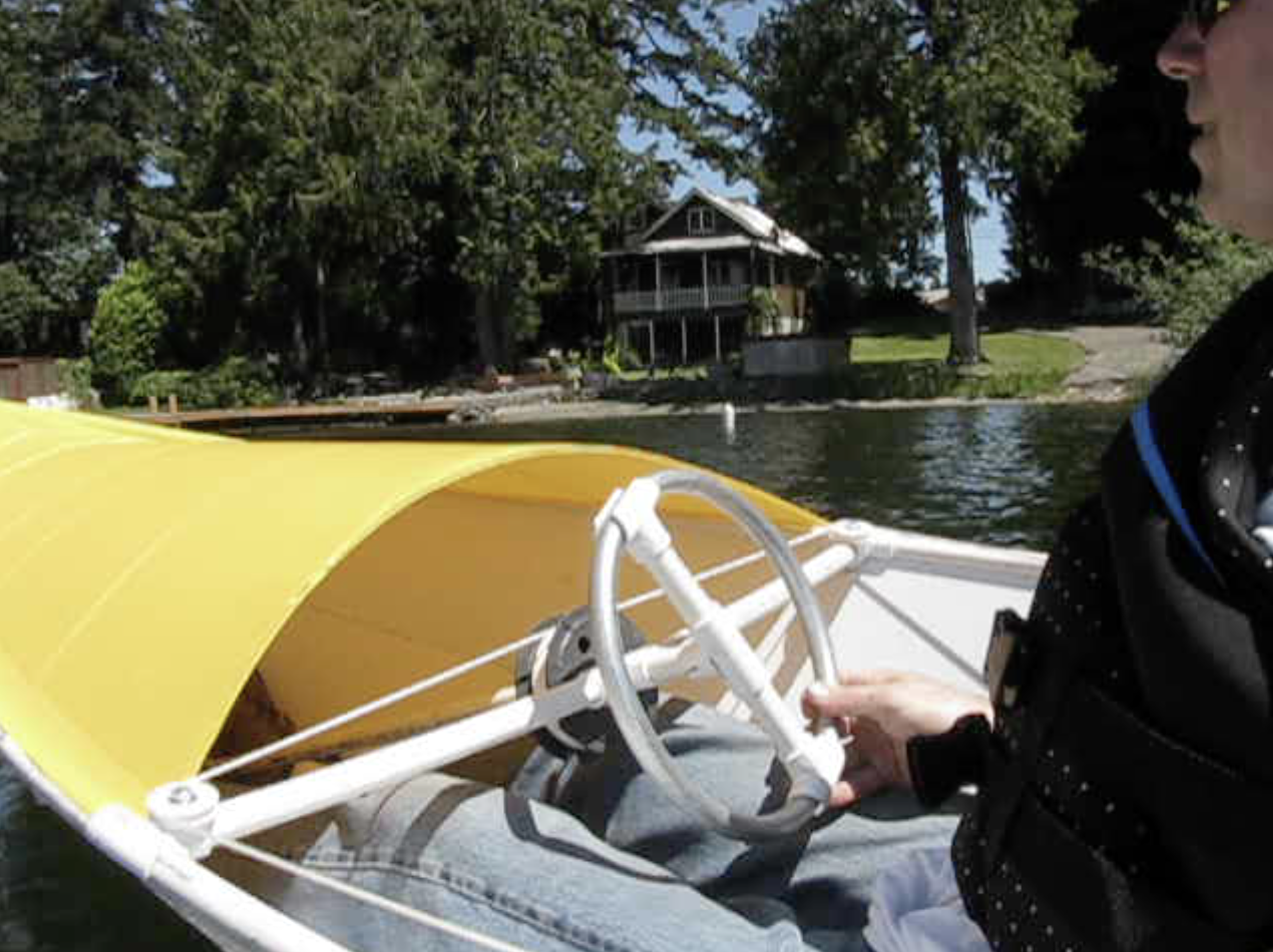

Later I added the yellow front spray guard.
At 6 knots top speed this is a fun little boat to buzz around in. It’s definitely low tech and with all the tools and materials at hand you can have this boat up and running in a weekend.
