Push Cart

Here’s a little push cart I made using 2 sheets of fluted plastic and some 1×2 lumber for the shell frame. I used button head screws to attach the

paneling and 3″ wide Gorilla duct tape to cover the seams. Here too you can see the 4 soffit vents attached to the back wall for ventilation.

I purchased the single locking 9″ diameter cart wheel at Harbor Freight.

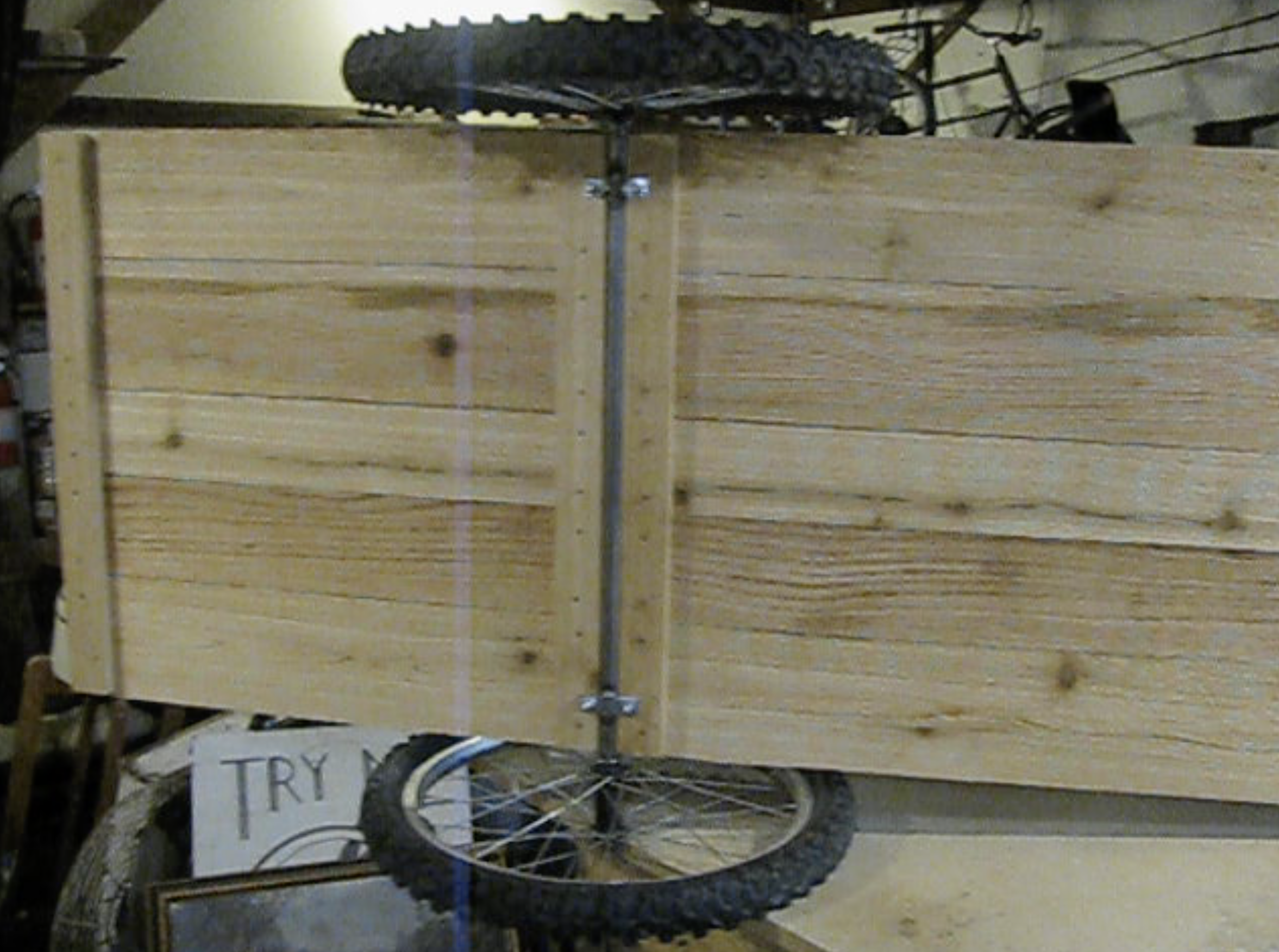

For the floor I used 3/4″ cedar fence boards. I used 20″ bicycle wheels positioning each axle to stick out on one end of the hub.

I welded several axle nuts together and beat them into the ends of the 3/4″ diameter steel tubing. I tack welded the nuts to the tubing then

screwed on the wheels. This is admittedly light duty, but so far it’s held up, and I don’t go pushing anyone around while they’re inside the cart.

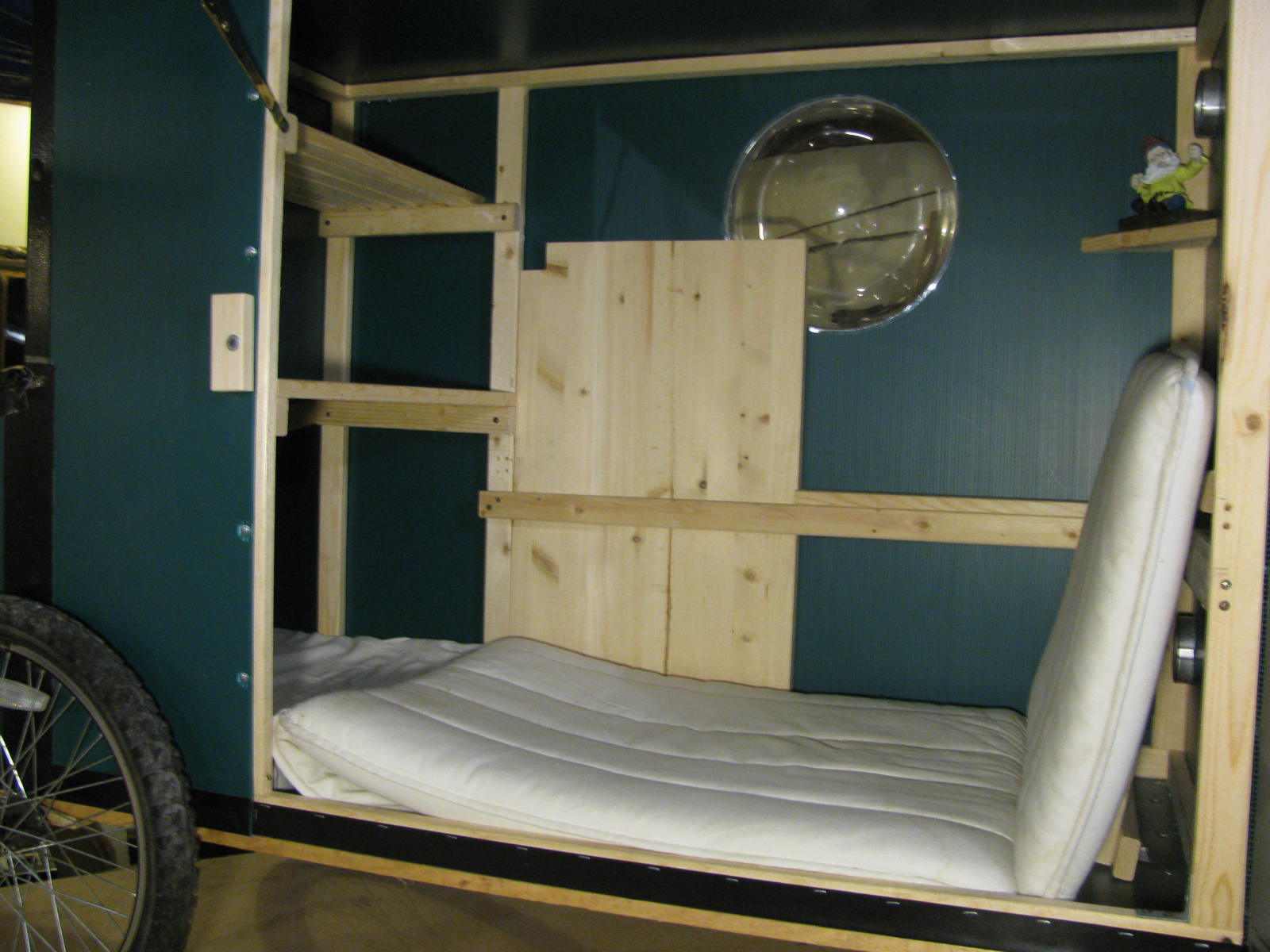

This cart was made 2 feet wide by 6 feet long, just long enough to lay down in. I also included a desk, some shelving and a small heater/stove.

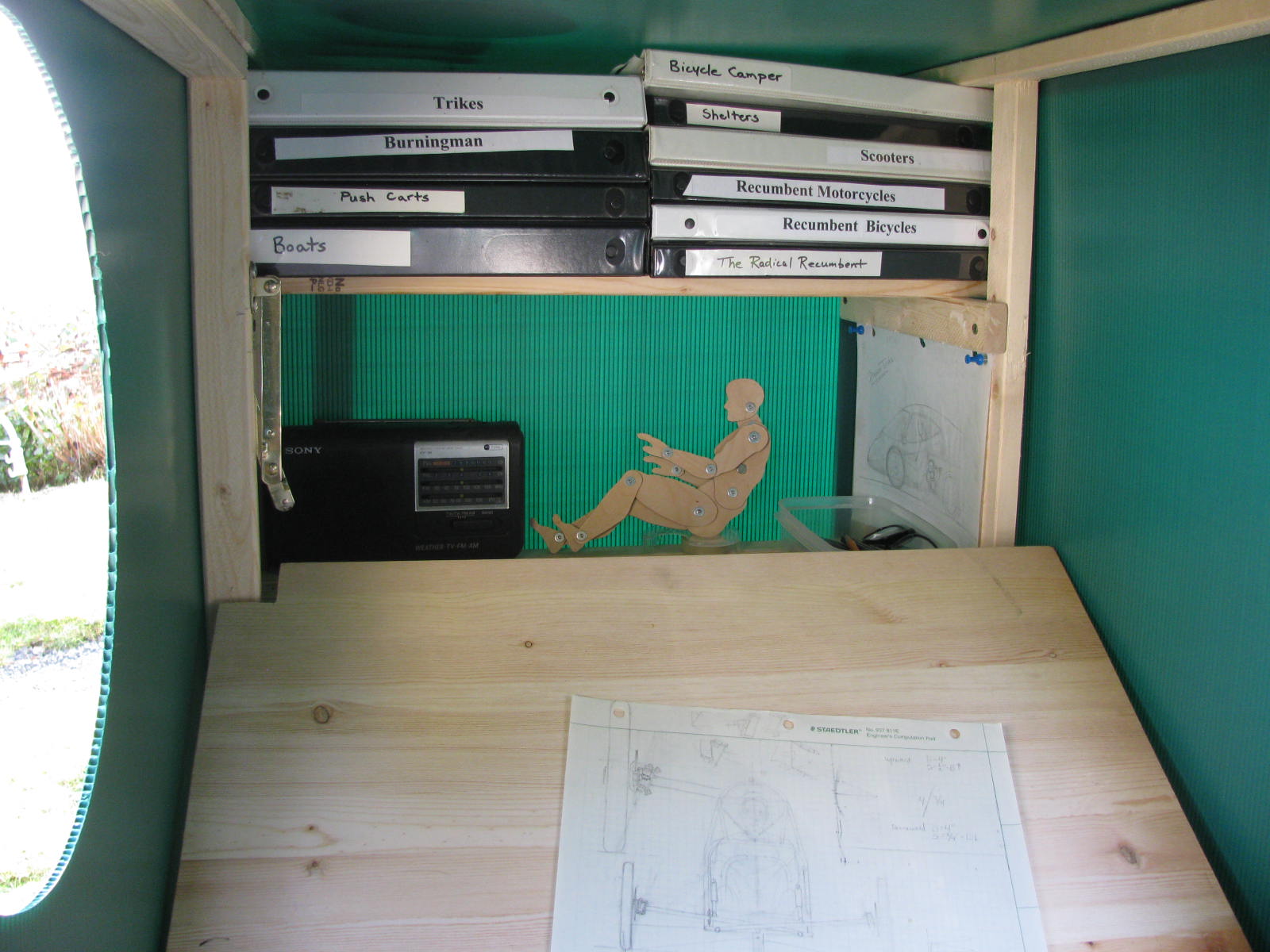

Here you can see the desk in its stored position.

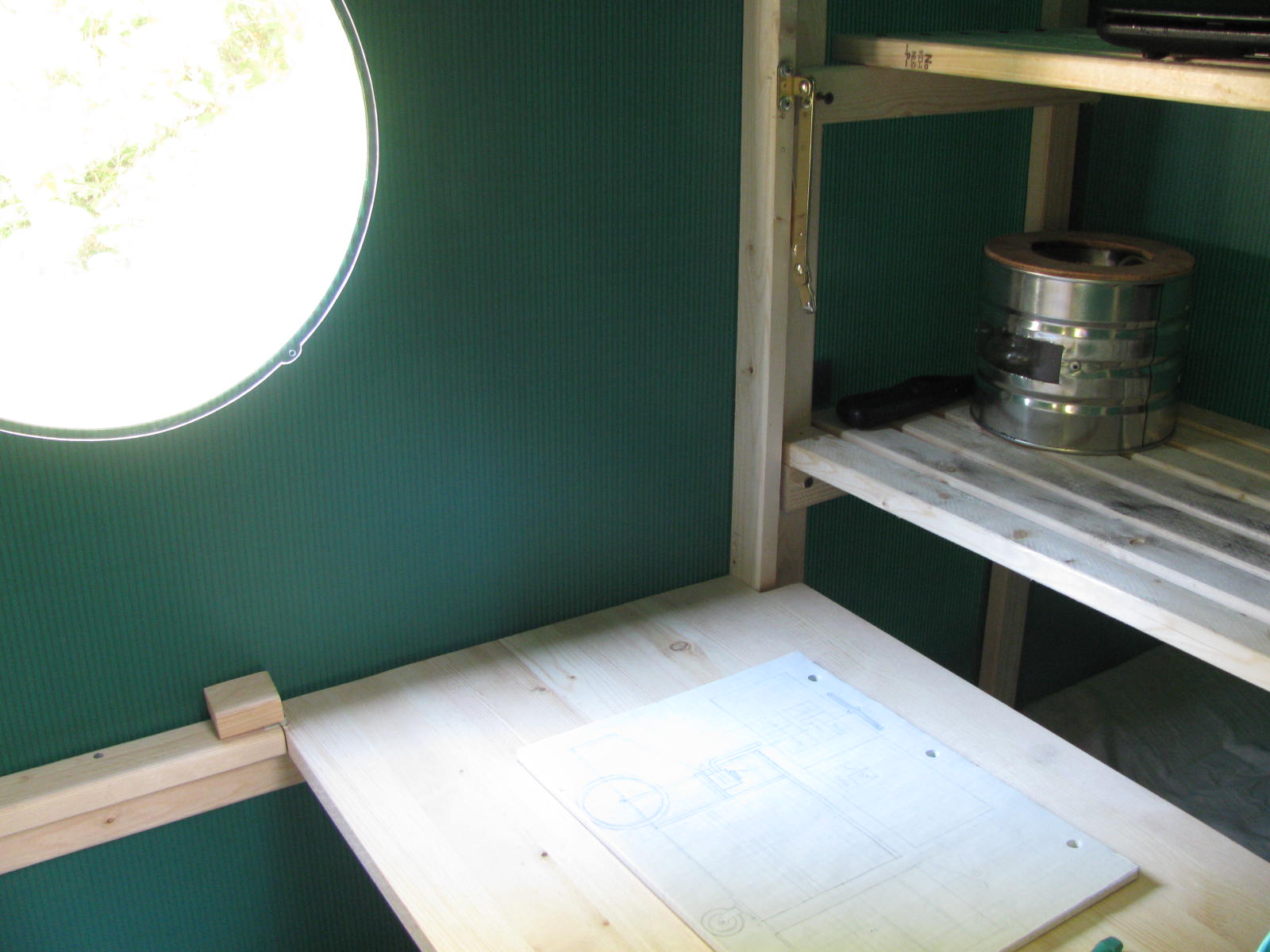

I used this primarily for bird watching and outdoor landscape sketching, but it could also be used as a place to draw.

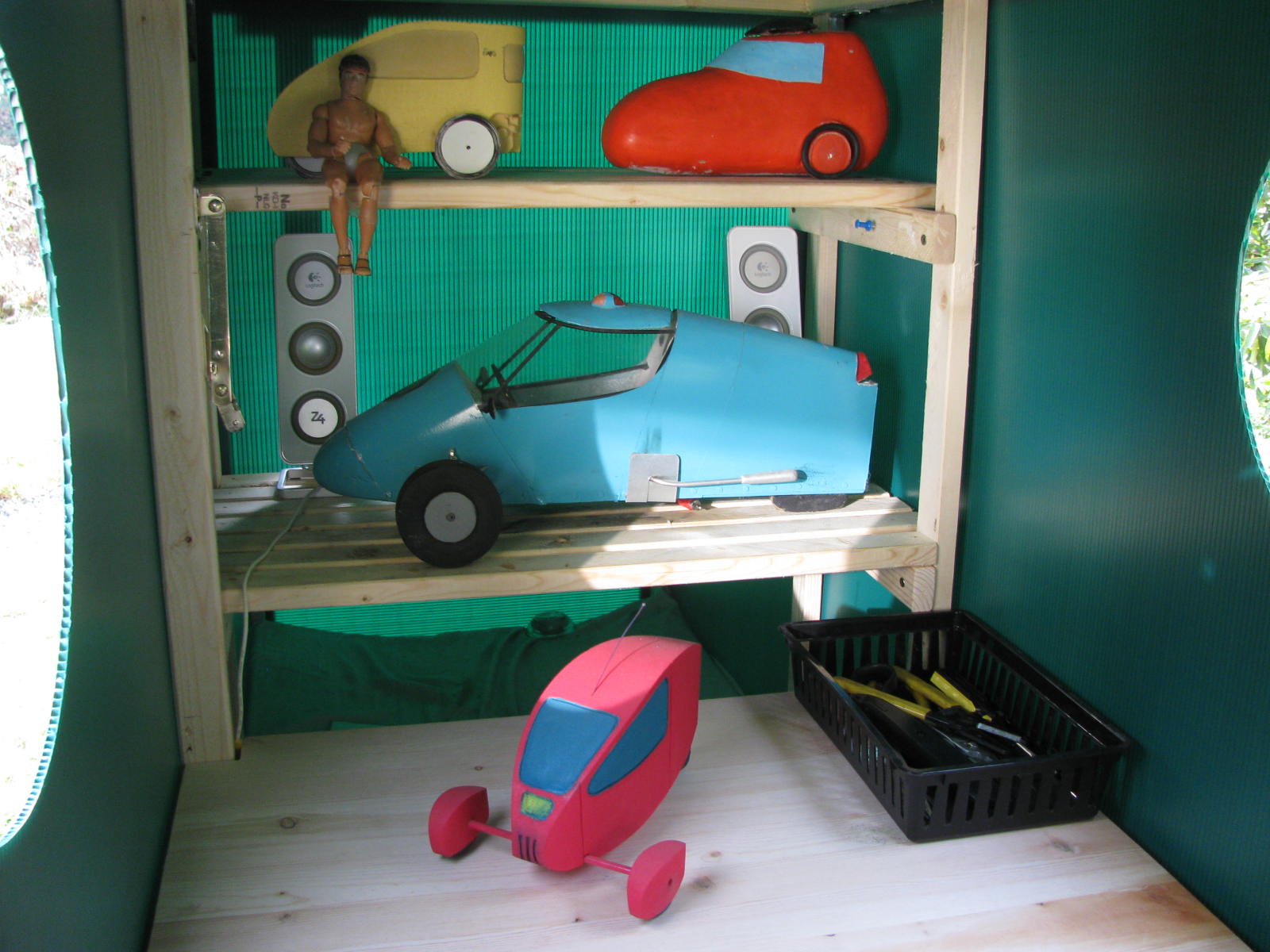

Or as a place to work on hobbies.

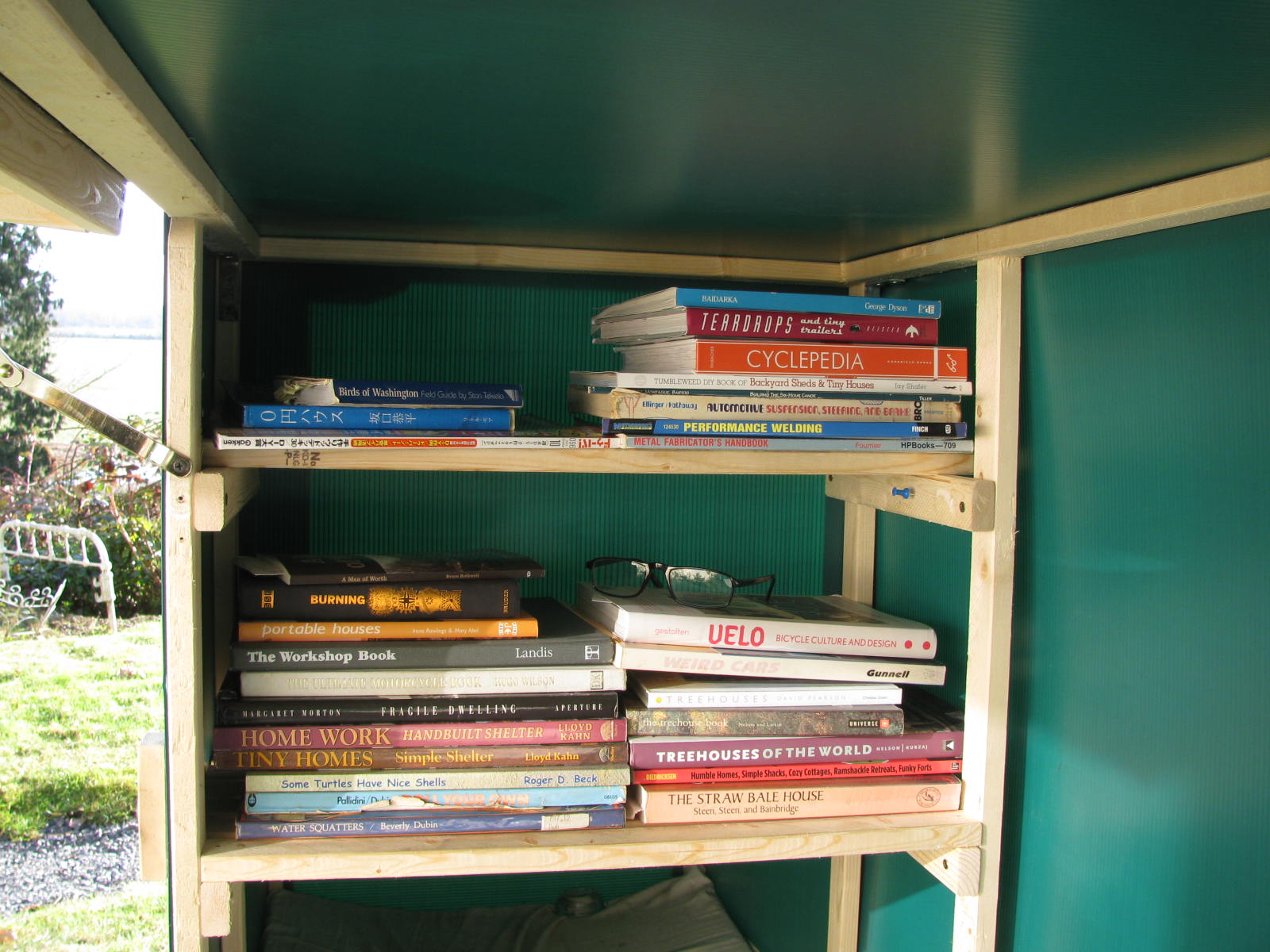

Or maybe a private library.

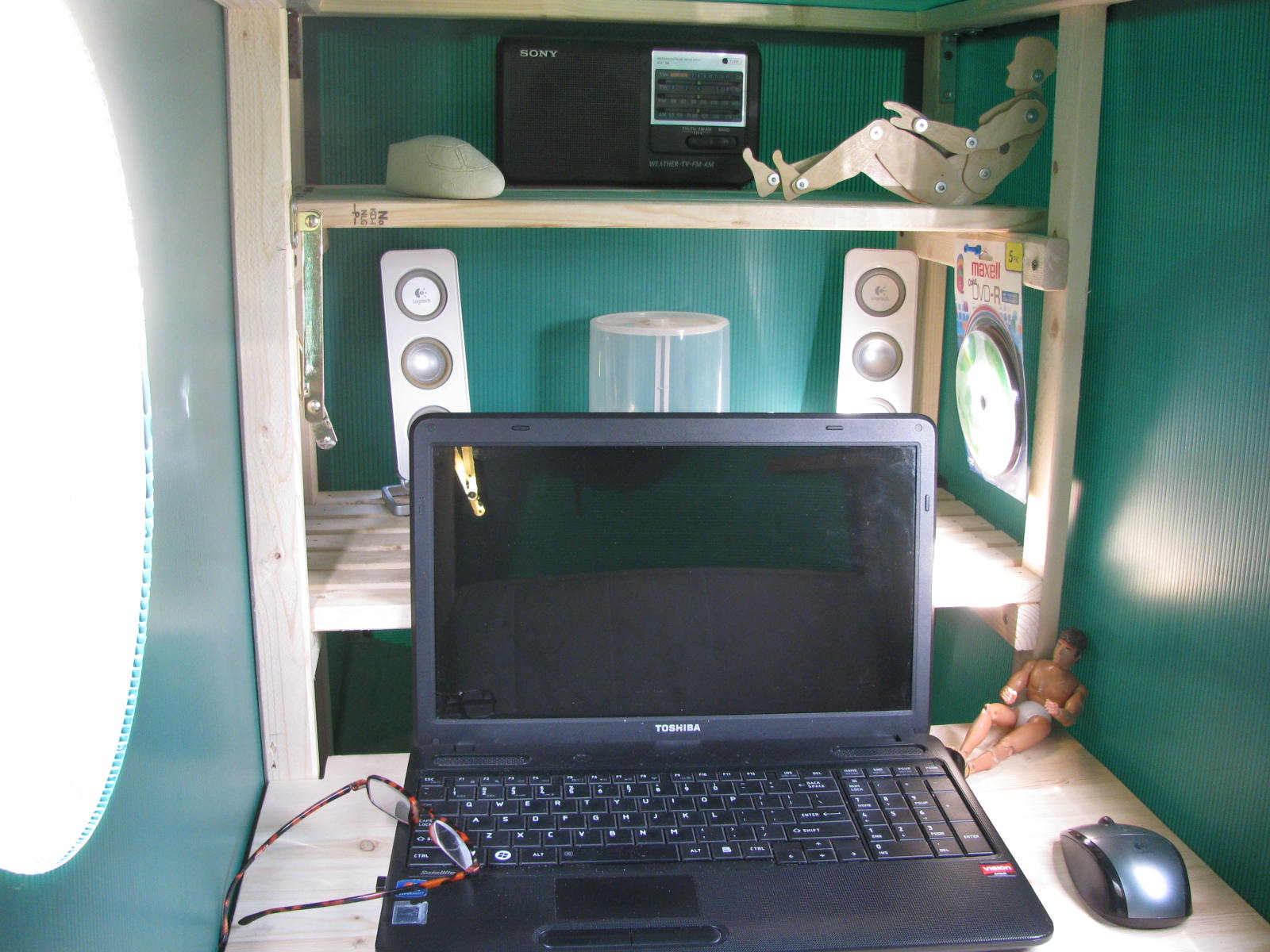

Or used as a small office.

Not only was the oil candle heater capable of warming the inside, it could also heat up a can of soup or beans, or heat tea water in my tin cup.

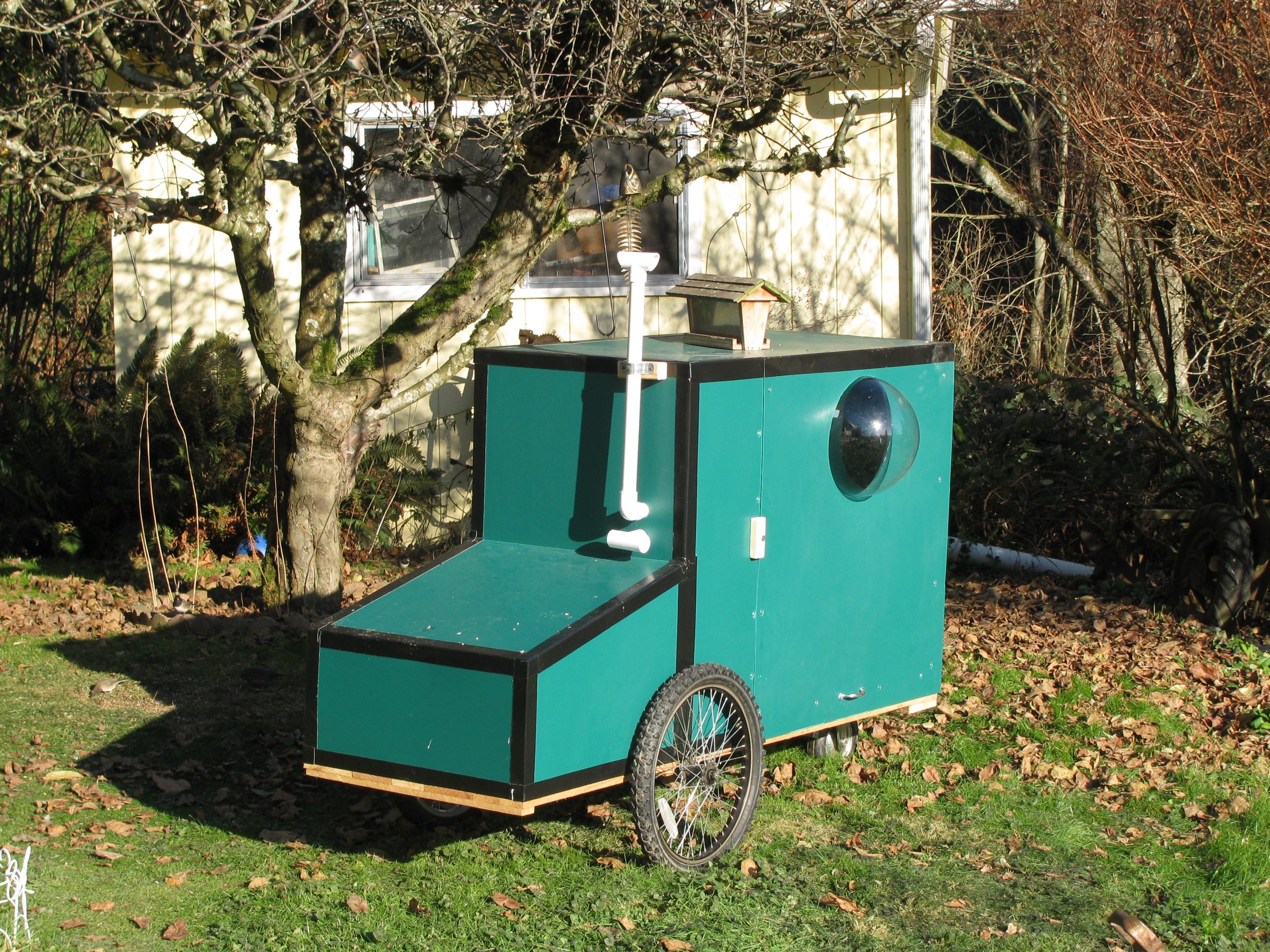

Here you can see the intake and exhaust pipes for the little heater/stove and one of the acrylic dome windows. These I found at a party store.

The blown windows were thin and only lasted four years before becoming brittle, but at $15 each they were removable and a nice addition while they lasted.
